UNIQUE FEATURES |
| |
|
- Portable,
Attractive & Sleek Design.
- Low Cost, Low
Maintenance.
- Automatic low
Battery cut-off.
- Highly Reliable &
Based on Latest Technology.
- Suitable for home,
office , shops & Movable shops.
- Backup mode
Protected against overload, short ckt etc.
- Multi features
like FM ,Night LED light , Mobile Charger etc.
(optional)
- Soft start backup
mode
|
 |
| |

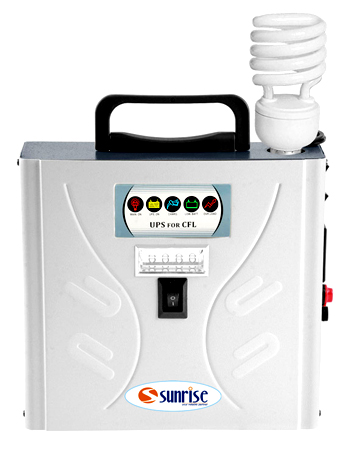

Click on image for large
view |
|
TECHNICAL SPECIFICATIONS |
|
Model: |
CFL
UPS |
|
Capacity : |
50
VA/ 40 Watt |
|
Battery Low cut-off : |
9.9± 0.1 V |
|
Battery Boost Voltage: |
13.8± 0.2 V |
|
Battery Recharge time: |
8 to
10 Hrs |
|
Battery Charger Range: |
125
V to 275 V |
|
Battery Charging Current: |
0.5
Amp to 0.8 Amp |
|
Battery : |
In-built 12 V- 7.2 Ah (1No.)SMF Dry Type |
|
Battery Backup TIme: |
6
Hrs on 1 CFL - 15 Watts (on full Charged Battery
Condition) |
|
 |
| |
| |
| |
|

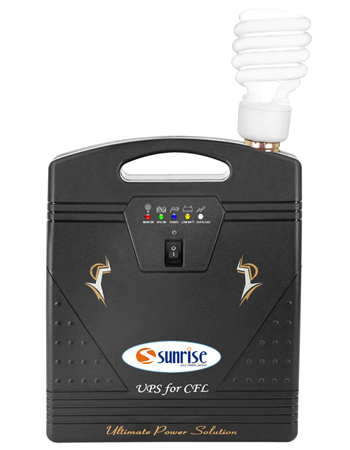

Click on image for large
view |
|
| |
| |
| |
|
|
 |
 |
 |
| |
|
|
| |
|
|
| |
|
|
|

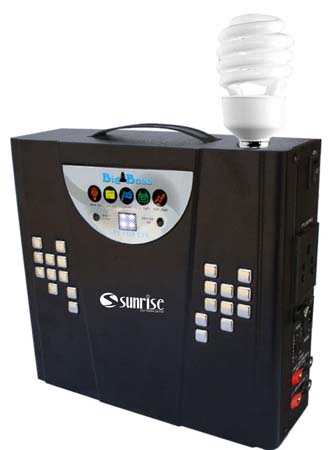

Click on image for large
view |

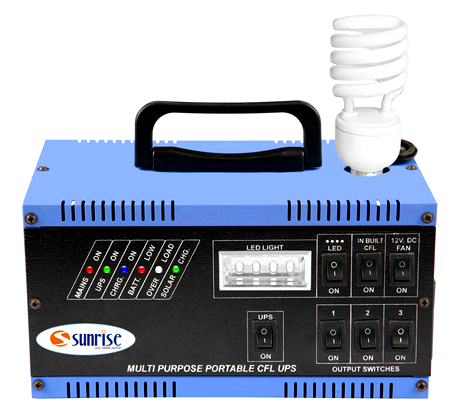

Click on image for large
view |

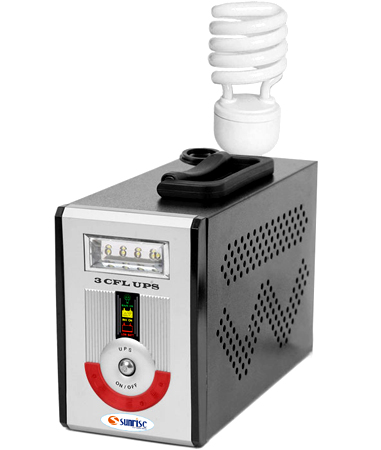

Click on image for large
view |
|
| |
